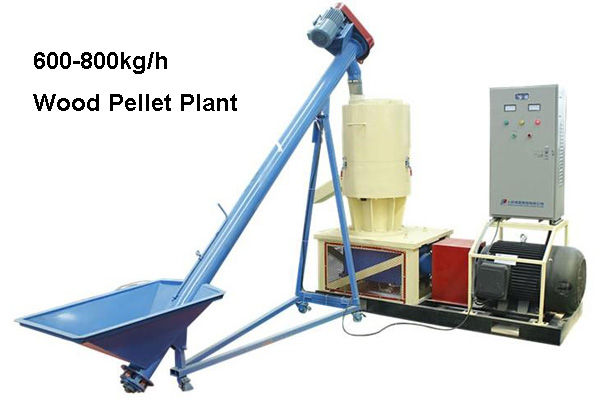

The pellet mill in wood pellet manufacturing plant
This ZLSP-R 550B pellet mill is GEMCO newly developed model for wood pellets manufacturing with high efficiency.
 |
Model | ZLSP-R 550B |
|---|---|---|
| Power(kW) | 55 | |
| Capacity | 600-800kg/h for wood | |
| Weight(kg) | 1900 | |
| Dimension(mm) | 2300x750x1850 |
Features of ZLSP-R 550B wood pellet mill
- It can work under heavy-duty working condition.
- It is CE certificated. The quality is guaranteed, operation is stable and can satisfy customer requirements.
-
It is equipped with updated electric motor to be more suitable for hardwood processing, such as beach, aburagi, oak, etc. - It adopts Germany Flender technology B series heavy-duty reducer to bear heavy load. Besides, this wood pellet mill is matched a compulsive lubricating pump to realize auto-lubrication while it is running.
- Its electric motor adopts SELF-COUPLE STARTER with big starting torque and stable starting. It is superior to star triangle starter in protecting electric motor and improving equipment performance.
- It applies three-roller compressing system to improve wood pellet making efficiency. The roller and die are made from high strength alloy and processed by multi heat treatment. The hardness can reach HRC52-63. One set of roller and die can be used to process sawdust for as long as 600hours.

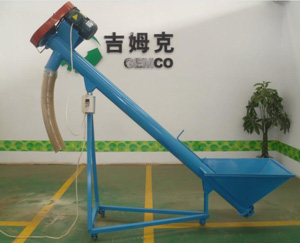

The movable feeder of wood pellet plant sale
This movable feeder is strongly suggested to match your pellet mill when you buy the big capacity wood pellet plant sale.| Model | Power | Capacity | Conveying length | Working temperature range | Conveying material temperature range |
|---|---|---|---|---|---|
| GMSLLX75D | 1.5kW | 1500KG/H (sawdust) | 2.5M or so | -20°～40°C | -20°～200°C |
Features:
- It is suitable for different models of flat die wood pellet mills: the frequency transformer makes its conveying capacity adjustable.
- Installed with wheels that make it movable.
Feel free to contact us for a complete wood pellet plant plan!
